FIXED MAGNET SECTOR MASS SPECTROMETER SOLUTIONS FOR INDUSTRIAL APPLICATIONS
Fixed Magnet Mass Spectrometry Technology
Fixed magnetic mass spectrometry, also known as magnetic sector mass spectrometry, is a type of mass spectrometry that uses a magnetic field to separate ions based on their mass-to-charge ratio (m/z). This technique is widely used in various analytical applications, including organic and inorganic chemistry, environmental science, and pharmaceutical analysis. In fixed magnetic mass spectrometry, a sample is ionized by an electron beam or other ionization source, creating positively charged ions. The ions are then introduced into the instrument and accelerated to a high speed using an electric field.
As the ions pass through a magnetic field, they experience a force that depends on their m/z ratio. This force causes the ions to follow a curved trajectory, with the degree of curvature depending on their m/z ratio. Only ions with a specific m/z ratio can follow a path that leads to the detector. The magnetic field in a fixed magnetic mass spectrometer is created using a magnet that is either permanent or electromagnet. The strength and direction of the magnetic field can be adjusted to control the separation of ions based on their m/z ratio.
Our fixed magnetic sector MGA™ mass spectrometer analyzers provide rapid, accurate and stable real-time analysis of up to 16 gas components in significantly less than 1 second. The unique combination of parallel spectrum processing and rapid stream selection makes this the world’s fastest available process gas analyzer with new stream analysis data provided every 2-3 seconds.
Rugged cybersecure communication options come standard. Designed with IIoT in mind, the control architecture is based on the Modicon M580 ePAC programmed with EcoStruxure Control Expert software. The touch-screen HMI provides full support for secure role-based access permissions and stored audit trails for end-to-end cybersecurity. The hazardous area compliant HMI provides full access to system configuration, real-time data, stored data, system status and diagnostics. The native ethernet control architecture provides industrial connectivity for SCADA, DCS, SIS and Data Historians.

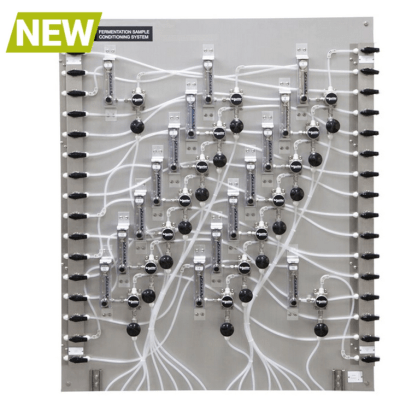

Fermentation Sample Conditioning System
Real-time dynamic monitoring of pilot scale reaction chemistries & continuous process streams
Sample Conditioning Systems (SCS) are necessary to ensure a representative sample is delivered to the process mass spectrometer. The panel illustrated above provides protection against liquid carryover and regulates the flow into the multi-stream sampler of the MGA 1200CS™. The SCS is designed for installation on the right-hand side of the mass spectrometer so the 16 inlets are on the right and the outputs are on the left.
MGA 1200CS™
MGA™ Cybersecure Fixed Magnet Mass Spectrometer Gas Analyzer - Ideal for Fermentation Control
This powerful instrument is pivotal in analyzing bioreactor off-gases during fermentation, providing crucial insights for optimizing production and achieving desired product outcomes. Its superior low drift characteristics guarantee unparalleled stability and accuracy over extended periods, enhancing the reliability of highly accurate OUR/CER/RQ calculations. Purpose-built to surpass gas analysis demands including iron and steel, ammonia, ethylene oxide, and ethylene cracking. Offering high precision and a dynamic measurement range (from high ppm to 100%) for full, speciated composition. The fixed magnet analyzer ensures rapid, accurate, and stable real-time analysis of up to 16 gas components in less than 1 second.
