Moisture Sensing Technology
Calorimeters
Dew Point Meters & Transmitters
Relative Humidity Hygrometers
All of the industrial COSA XENTAUR™ dew point meters use our Hyper Thin-Film (HTF™) Al2O3 Moisture Sensing Technology high capacitance sensors. The Hyper-Thin-Film Technology is based on major advances in thin-film technology and metal oxide sciences. It provides measurements with a sensitivity several orders of magnitude larger than of those made with all other technologies. HTF sensors are free of drift and insensitive to temperature changes over most of their range.
Dew Point Meter – usually refers to a portable or handheld instrument designed for spot-check measurements of dew point (the temperature at which moisture in a gas begins to condense). It’s commonly used for quick checks in compressed air systems, gas lines, or process environments. For example, the XPDM Series is described as a “portable dew point meter” (i.e., handheld) designed for spot-checking dew point in various gases.
Dew Point Analyzer (Transmitter) – typically a more advanced or fixed system used for continuous monitoring, higher accuracy, or laboratory-grade analysis. Analyzers often include additional features like data logging, automatic calibration, multiple sensor inputs, and integration with process control systems. Cosa’s transmitters such as the XDT Series digital dew point transmitter, designed for continuous monitoring of air-dryer performance, dry gas moisture etc.
COSA XENTAUR™ 9610 CXc™ Continuous BTU Calorimeter
Measure Wobbe Index, BTU/Heating Value and CARI.
- Key advantages include insensitivity to ambient temperature changes, fast response times (T90: 5 seconds), and the ability to measure low-BTU gases.
- Zirconia oxide cell technology to measure residual oxygen in flue gas after combustion, ensuring high accuracy (±0.2%) and reliability.
- Designed for diverse applications, it features a wide measurement range (up to 3,000 BTU/SCFH), low maintenance, no flameouts, and hazardous area approval.
- Suitable for outdoor use without special enclosures and includes integrated sample pumps and options for higher temperature handling.
- Fast-delivery, cost-effective continuous gas analysis solution with real-time BTU analysis, quick results and reduced downtime.
- Optional hydrogen measurement is also fully integrated for comprehensive performance.
COSA XENTAUR™ LPDT2™ Series Low Pressure Dew Point Transmitter
An ultra-compact, and loop-powered (two-wire) instrument for measuring dew point temperature in industrial applications.
- Low pressure dew point transmitter is an ultra-compact, loop-powered device available with or without a display.
- Highly stable aluminum oxide sensor to deliver accurate, real-time dew point measurements across a wide range (-148°F to 68°F).
- Designed for industrial applications, it supports Modbus and analog outputs for cost-efficient integration.
- Key features include high accuracy, fast response times, and resistance to contamination from oils and fuels, and reliable performance with low maintenance.
- User-friendly design offers easy installation, calibration, and an optional 4-button display for enhanced control.
- Two versions are available: a blind transmitter using HTF™ Hyper-Thin-Film sensors for cost-effective solutions and a display version for enhanced functionality and control.
COSA XENTAUR™ LPDT™ Series Dew Point Transmitter
Extremely small, loop-powered (2-wire) dew point transmitter with easy-to-read display.
- State-of-the-art microprocessor technology and offer many advanced intelligent features. With optional dual alarms, analog and digital outputs, our dewpoint transmitters can be used as indicators, alarm units or controllers.
- Highly accurate and reliable instruments that provide continuous monitoring and measurement of dew point temperature in various industrial and commercial application.
- Wide measuring range: Can measure dew point temperatures from as low as -110°C to as high as 20°C, making it suitable for a wide range of applications.
- The two optional alarm relays can be independently programmed to switch at any dew point with variable hysteresis, which makes the transmitter ideally suited as an energy saving controller.
- HTF™ Sensor Technology
- Multiple housing configurations
- Very low drift
- Long sensor life
COSA XENTAUR™ XDT™ Series Digital Dew Point Transmitters
Compact, simple, and reliable continuously monitoring air dryer performance, compressed air quality and dry gas moisture.
- User-Friendly Interface: Operated via a custom LCD display and three push buttons, similar to all COSA XENTAUR™ hygrometers.
- Flexible Output: Analog output is linear and user-configurable to selected engineering units.
- Optional weatherproof cap for outdoor NEMA 4X (IP65) use.
- Sensing Technology Options: Available with aluminum oxide, chilled mirror, or polymer sensors tailored to specific application needs.
- Aluminum Oxide Sensors: High accuracy, stability, and resistance to contamination.
- Chilled Mirror Sensors: Ideal for high-precision applications.
- Polymer Sensors: Suitable for specific moisture measurement requirements.
- Delivers accurate, stable measurements of dew point temperature to monitor moisture content effectively.
- Fits a wide range of industrial environments and applications.
HDT™ Hyper-Thin-Film Technology Series Dew Point Transmitter
Continually monitors air dryer performance, compressed air quality and dry gas moisture, from ambient dewpoint levels to as low as -100°C.
HDT-LQ™ Series Transmitter
Dew Point Transmitter HDT™ Series with a Specialized HTF™ aluminum oxide sensor for work in liquid Hydrocarbons; continually monitors dissolved water in hydrocarbon liquids.
COSA XENTAUR™ Portable XPDM™ Dew Point Meter
Battery operated, hand-held, hygrometer. The Portable XPDM has Spancheck™; a feature that allows users to easily check the calibration of the instrument in the field.

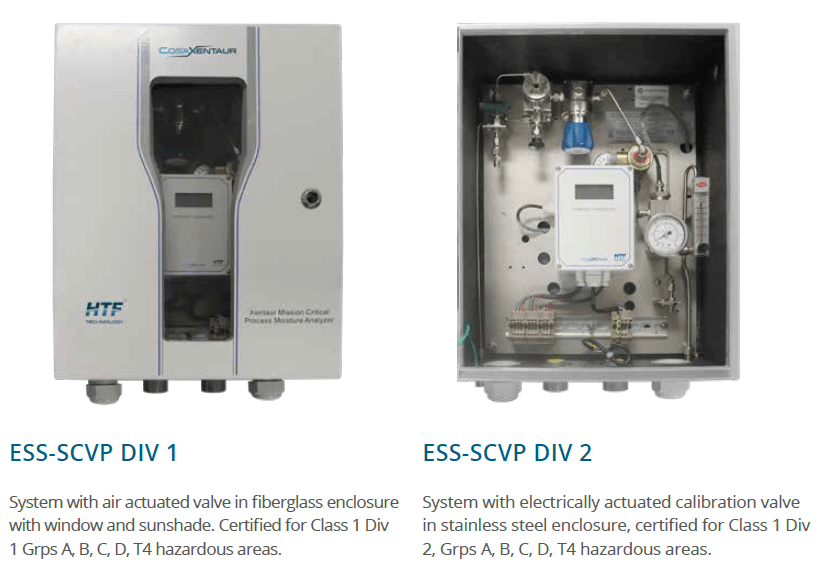

COSA XENTAUR™ ESS™ Dew Point Extractive Sampling System
Configures to accommodate almost any measurement requirement for dew point analysis utilizing several different dew point meters.
